What is Tube Oil Skimmer? | Abanaki

Posted by Tom Hobson on Sep 26, 2019 1:13:56 PM



Tube oil skimmer is a surface tube oil skimmer that can effectively removes floating surface oils by means of an oleophilic (oil attracting) 3/4 inch diameter continuous looped tube. The tube extends out over the surface of the tank or pit and collects the free floating oils.

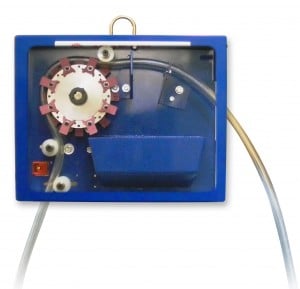

Abanaki tube oil skimmer (The Oil Viper) has a specially designed method for removing the oil from the tube. It has a unique wiper combination attached to the tube itself in addition to the ceramic wiper on the skimmer. The result is a virtually oil free tube as it leaves the surface oil skimmer for quicker oil removal. Removal rates can be as high as one hundred gallons per hour.

How Does a Tube Oil Skimmer Work?

The Oil Viper tube oil skimmer can be used in wastewater applications that are shallow in depth. The Oil Viper tube oil skimmer is a great fit where a belt skimmer is too big. Due to the sleek design of the Oil Viper tube oil skimmer it can skim in just inches of water compared to a belt skimmer which could need one to two feet of water to skim from.

The Oil Viper tube oil skimmer works off the same principle of the belt skimmer, the tube breaks the surface tension of the water, the oil is then collected and skimmed off by its unique wipe clean design. Two tube materials are available, the standard tube is great in a wide variety of applications; the high temperature tube is best suited for high temperature or caustic applications.

Large Tube Oil Skimmer

Large tube skimmers use a floating plastic hose that snakes out over the surface of the liquid and is then drawn back through the drive unit where oil is removed. This design requires a relatively large amount of fluid surface area for proper operation. Length considerations are the same as for belt skimmers; a typical tube diameter is 1 inch.

Small Tube Oil Skimmer

Mini tube skimmers are very similar to the larger tube units, but typically have either a 3/16-inch or a 5/16-inch diameter tube. The 5/16-inch diameter is preferable as it has enough stiffness to not drag on the housing and prematurely wipe off oil when drawn into the unit. Pickup rates vary from 1 quart/hour to 1.5 gph, depending on diameter and speed. These units can be used where space is limited. Units that have the motor mounted underneath reduce the amount of space required over the rim of the tank to nearly zero.




Video: Tube Oil Skimmer | Oil Viper | Abanaki



To learn more about Abanaki oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com


You are just one step away from downloading the most dependable and effective Oil Viper Tube Oil Skimmer brochure. Simply click at the button to get your brochure now.

Get Brochure

Read More

Topics: oil viper tube skimmer, oil skimmers, oil skimming, tube oil skimmer, tubetastic, tube skimmer, oil skimmers applications

Advantages of Using an Oil Skimmer in the Machining Industry

Posted by Tom Hobson on Nov 19, 2018 10:45:00 AM

Companies look for effective ways to remove oil from water or coolant to reduce costs and the liability of proper disposal. Another reason for removing the oil is a better work environment. Letting oil remain in the coolant tank allows anaerobic bacteria to grow. Anaerobic bacteria break down the components of coolant, causing it to need changing more frequently. Oil-laden coolant with a high anaerobic bacteria content has two other drawbacks as well. The first drawback is an unpleasant odor caused by the bacteria. The second drawback the smoke generated from the oil-laden coolant coming in contact with the operating cutting tool. One of the easiest ways to remove hydrocarbons from water or coolant is by using an oil skimmer. It is a low maintenance, easy to use tool for removing oil from water or coolant.

The use of an oil skimmer holds many benefits including:

Reduction of Disposal Costs: The cost of disposing oil laden coolant is more expensive than the disposing of oil.

Recycling Opportunities: In some instances, companies may be able to re-use the skimmed oil elsewhere or sell it for recycling, choosing to keep their part of the world cleaner.

Extend Coolant Life: Having oil free coolant can also extend its usefulness and effectiveness, reducing the expense on maintenance and coolant replacement.

Esthetic Benefits: Removing the oil from a machine coolant tank will cut down on the amount of smoke generated from the cutting tool coming into contact with oil laden coolant thereby creating a visibly cleaner workplace.

Extend Tool Life: Removing floating surface oils while aerating and refreshing coolant will extend tool life as well.

Avoid EPA Violations: Many machining and metal working shops turn to aqueous parts cleaning because of limits imposed by the EPA on the discharge of emissions and wastes.

Hygienic Benefits: Keeping coolant oxygenated and oil-free reduces the “rotten egg” odor and bacterial levels are lowered resulting in a cleaner work environment.

Abanaki Corporation manufactures a wide variety of oil skimmers to meet any size application. From a small coolant tank in a CNC lathe to a scale pit in a steel mill, Abanaki Corporation can supply a skimmer to do the job. We manufacture skimmers that can remove from 1 gallon per hour to 200 gallons per hour. We offer turnkey systems with a variety of motors, heat options, stands, and oil concentrators. Our skimmers are used on parts washers, in car washes, wells, steel mills, and any other industry where hydrocarbons need to be removed.

To find out which of our skimmers would suit your application the best, please contact our experts at 440-543-7400, or click the button below to get our Oil Skimming Factbook.

Get Your Factbook

Read More

Topics: coolant, tube oil skimmer, oil skimmer, tubetastic, tote-it, coolant skimmer, mighty mini, belt oil skimmer, dirty coolant, disk skimmer, oil boss, oil boss oil skimmer, mighty disk

How Do I Remove Oil from Coolant or Water

Posted by Tom Hobson on Nov 14, 2018 10:15:00 AM

It is a common question asked every day by people in all fields of industry. Machine shops, steel mills, industrial manufacturers, and many others are faced with the problem of removing oils from coolants and wastewater on an everyday basis. They are faced with high disposal and maintenance costs. Some manufacturers are charged extreme amounts to have their contaminated water treated properly by their local water treatment facility.

Companies look for effective ways to remove oil from water or coolant to reduce costs and the liability of proper disposal. Another reason for removing the oil is a better work environment. Letting oil remain in the coolant tank allows anaerobic bacteria to grow. Anaerobic bacteria break down the components of coolant, causing it to need changing more frequently. Oil-laden coolant with a high anaerobic bacteria content has two other drawbacks as well. The first drawback is an unpleasant odor caused by the bacteria. The second drawback the smoke generated from the oil-laden coolant coming in contact with the operating cutting tool. One of the easiest ways to remove hydrocarbons from water or coolant is by using a belt oil skimmer. It is a low maintenance, easy to use tool for removing oil from water or coolant.

Belt oil skimmers work because of the differences in specific gravity between oil and water. Water has a specific gravity of one. Most oils have a specific gravity of less than one. Because of these differences, oil floats to the top of the water where it can be removed. A belt oil skimmer uses oil oleophilic material, (usually made of stainless steel or plastic), in the form of a belt to break the surface tension of the water to attract
and collect the floating oil. The belt passes through a set of wiper blades via a motorized head pulley where the oil is wiped off both sides of the belt. The oil then flows through the skimmer troughs and into a proper disposal container. Because the belt materials used do not attract water, very little coolant or water is picked up.

Some of the advantages of using a belt oil skimmer over other methods to remove oil are the lower initial cost compared to coalescers and other filtration systems, low maintenance, no filters to change, and no mess involved as with absorbent booms or pads. With an oil skimmer, virtually the only required maintenance is replacing a belt and wiper blade set as needed. Next, Abanaki skimmers require very little operating space, usually with no modification to the tank. Finally, our oil skimmers have pick-up rates of up to 200 gph with minimal water or coolant content. Other forms of oil removal cannot perform as well.

There are many instances where companies have turned their disposal costs into income. By using an Abanaki oil skimmer to remove oil from the coolant, one company was able to sell its used oil to be recycled instead of being charged to have the oil-contaminated coolant disposed of. Another money saving benefit was an extended coolant life resulting in lower coolant and maintenance costs. Because of this, the Abanaki oil skimmer paid for itself in a short period of time.

Abanaki Corporation manufactures a wide variety of oil skimmers to meet any size application. From a small coolant tank in a CNC lathe to a scale pit in a steel mill, Abanaki Corporation can supply a skimmer to do the job. We manufacture skimmers that can remove from 1 gallon per hour to 200 gallons per hour. We offer turnkey systems with a variety of motors, heat options, stands, and oil concentrators. Our skimmers are used on parts washers, in car washes, wells, steel mills, and any other industry where hydrocarbons need to be removed.

To find out which of our skimmers would suit your application the best, please contact our experts at 440-543-7400, or click the button below to get our Coolant Guide Book.

Get Free Guide

Read More

Topics: coolant, tube oil skimmer, oil skimmer, tubetastic, tote-it, coolant skimmer, mighty mini, belt oil skimmer, dirty coolant, disk skimmer, oil boss, oil boss oil skimmer, mighty disk

How to Select the Right Coolant Oil Skimmer for the Machine Shop

Posted by Tom Hobson on Oct 31, 2018 10:15:00 AM

The use of an oil skimmer in the machine shop setting holds many benefits. Removing the oil from a machine coolant tank will initiate some esthetic benefits such as cutting down on the amount of smoke generated from the cutting tool coming into contact with oil laden coolant.

When a machine is shut down for the weekend, oil has a chance to come to the surface of the coolant tank. Bacteria that are living in the coolant tank use up the dissolved oxygen in the coolant mix, a process that is sped up by having a layer of oil on the surface. This allows odor causing anaerobic bacteria to thrive, giving off that familiar “rotten egg” smell.

Contrary to popular belief the common types of bacteria found in metalworking fluids do not cause dermatitis. However, if the skin is broken, bacteria that normally inhabit the skin may enter and cause infection. The presence of phosphates and carbonates that increase alkalinity in the coolant, however, can cause dermatitis. These impurities are found in the water being used in the coolant mix.

Separating the oil from the coolant will also help reduce disposal costs. The cost of disposing of oil laden coolant is more expensive than disposing of oil. In fact, in some instances, companies may be able to re-use the oil elsewhere or sell it for recycling. Having oil free coolant can also extend its usefulness and effectiveness, reducing the expense on maintenance and coolant replacement. As the research on the different types of oil skimmers begins, a person will find that there are a variety of skimmers available to them. The most common types are the belt, disk, and tube skimmers. Each type of coolant skimmer has its advantages and disadvantages.

There are also many factors that need to be considered when choosing the correct type of oil skimmer to fit the appropriate application. Factors such as water level fluctuation, water temperature, pH level, the use of rust inhibitors, the amount of oil to be skimmed, quality, and cost, must all be considered when selecting an oil skimmer.

The use of rust inhibitors, high temperatures, and variable pH levels can affect the skimmers ability to pick up oil. Most skimmer manufacturers use a variety of materials for the skimming medium such as plastic, stainless steel, or poly blends to match the solution in which they will be used.

There are a multitude of oil skimmers on the market today. One of the most important things to be considered is the quality of the unit to be purchased. Points of interest should include construction materials, motor design, and the type of warranty that is offered. Is the skimmer housing made of metal or plastic? Is the motor fan-cooled? Does the motor use needle bearings or bronze bearings? How long does the warranty last and what does it cover? Most oil skimmers will perform as advertised, but remember the old adage that “you get what you pay for”.

To find out which of our skimmers would suit your application the best, please contact our experts at 440-543-7400, or click the button below to get our Coolant Guide Book.

Get Free Guide

Read More

Topics: coolant, tube oil skimmer, oil skimmer, tubetastic, tote-it, mighty mini, belt oil skimmer, disk skimmer, oil boss oil skimmer, mighty disk

Tube Skimmers: Providing Small Solutions to Big Problems

Posted by Tom Hobson on Jul 26, 2017 10:52:39 AM

Tramp oil is huge problem for machining centers.  It can affect the appearance of the finished part, lead to worker skin conditions and leave a haze of smoke in the shop creating an environmental hazard.  Many machining centers built today have limited access to the coolant sumps more than they used to.  This creates a dilemma: how do you remove oil from a coolant sump when you barely have access to it? A mini tube skimmer, like the Abanaki’s Tubetastic!®, may be the perfect solution for this problem. The Tubetastic! has an oleophilic tube that snakes into your machining center and removes the oil from the surface of your coolant.  It attaches to the side of the tank lip or it can enter through a slot in the side of the machine.   Furthermore, it has a high capacity to remove oil.  The Tubetastic! can remove as much as 1.5 gph of oil from the surface of cutting fluid, enough to handle virtually any tramp oil problem.

The TubeTastic! features a 50/60hz fan-cooled, continuous duty motor in either 110 or 220v and standard collector tubes allowing reaches of 8″, 12″, 18″ or 24″ with longer lengths available.

Get TubeTastic Brochure Now

TubeTastic! Video

Read More

Topics: coolant, oil skimmer, tubetastic, abanaki, machine shops

Having tough time in your coolant tank? 6 names you should remember!!!

Posted by Tom Hobson on Dec 19, 2016 10:53:23 AM

1. Oil Boss


Abanaki's Oil Boss is an innovative tool for keeping coolant free of oil. The patent-pending design allows for easy visual inspection of your coolant’s condition; and will also help extend tool and coolant life. It will decrease loss of production and maintenance time. And it will allow for easy cleaning of various sumps or tanks around any plant or shop due to its portability and magnetic base. The Oil Boss has a small footprint that reduces the amount of clutter and equipment on the shop floor.

2. Mighty Disk


Mighty Disk is the inexpensive way to remove unwanted tramp oils from coolants and parts washers, but with all the quality that you expect from Abanaki! Removes up to 1 ½ gallons of oil or more of medium weight oil per hour. Use it almost anywhere a flat surface is available for mounting. Weighs less than 10 pounds, installs in no time, and runs on 110v power.

3. TubeTastic


The Abanaki TubeTastic! oil skimmer can be used on machining centers with little or no access to the coolant sump from above. This unit can skim oil from chip conveyors or even totally enclosed machining centers. The TubeTastic! can be easily mounted on the side of virtually any machining center coolant sump. By use of an existing opening or by making a small access cutout, the collector tube runs through the surface of the coolant and collects the unwanted oils. The oil then flows out the discharge tube into any waste oil container for easy disposal.

4. Mighty Mini


The stainless steel Mighty Mini is a compact belt skimmer designed for parts washers and machine tool coolant sumps. With its large discharge trough and small operating space, the Mighty Mini fits almost anywhere. The stainless steel construction resists rust and corrosion in harsh environments. It is lightweight and requires minimal assembly. With its durable stainless steel construction, it is built to give long lasting performance. The removable trough makes cleanup fast and easy.

5. Lil Blue



Lil Blue is the economical solution to remove unwanted oil in coolant sumps and machining centers! Removes one gallon or more of medium weight oil per hour. Use it almost anywhere, even through a 2" diameter bunghole in a drum. Use it here today, there tomorrow. Weighs only 6 pounds, installs in seconds and runs on 110v power. Constructed of tough engineered plastic and includes long life fan-cooled motor.

6. Ultra Mini


The Ultra-Mini is a lightweight, compact belt oil skimmer that can be used with 12v power allowing the skimmer to be wired directly into machining center control panels or plugged into a 110v wall outlet. The simple design means very little maintenance and requires few replacement parts. The cogged belt coupled with the weighted tail pulley prevents the belt from slipping during operation. Its compact design requires very little mounting space.





Read More

Topics: ultra-mini, oil skimmers, tubetastic, mighty mini, disk skimmer, oil boss, Lil Blue

Tube Oil Skimmer at IMTS

Posted by Tom Hobson on Sep 12, 2014 6:21:19 AM
The Oil Skimmer Facts Tutorial Handbook is the industry’s leading guide on oil skimming solutions. Learn how to properly size/select a skimmer as well as learn about all the aspects to consider in every application. Click here and receive your free copy now!
Read More

Topics: IMTS, tube oil skimmer, oil skimmer, tubetastic

Tube Skimmer Provides Small Solution to a Big Problem

Posted by Tom Hobson on Oct 23, 2012 4:48:51 AM

Many of the machining centers built today have limited access to the coolant sump. This presents an interesting challenge to plant maintenance personnel on how to remove the oil from the coolant sump in their machine. They need a small solution to a big problem; a tube skimmer like the Tubetastic is the perfect fit. The tube skimmer has a small footprint and an even smaller mounting arrangement. There is a small lip on the front of the tube skimmer that allows you to easily mount the skimmer on even the most limited-access tank. The tube skimmer has an oleophilic tube that snakes into your machining center and removes the oil from your coolant. Keeping coolant clean is important in reducing shop odors and will make coolant last longer. See how the Tubetastic tube skimmer works in this animated demonstration.

Read More

Topics: coolant, oil skimmer, tubetastic, abanaki, machine shops
